filters



filters




Filtration down to 0.01 micron particle removal (99.99% efficiency)
0.01 mg/M3 residual oil content in outlet air
1/4" nB through 1" nB Models in Stainless Steel housings (Guaranteed for 5 years)
Very low pressure drop (0.07 Bar Initial)
Long cartridge life
  filters

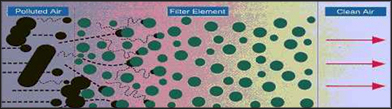

Sub-Micron Oil Removal Filters guarantee technically oil and particle free air. With Borosilicate Glassfibre filter cartridges, residual oil content of less than 0.01 (or 0.1, 1, 2) mg/M3 in outlet and particle removal of 0.01(or 0.1, 1, 5) micron are offered. Silicone treated borosilicate glass fibre media cartridge with in built pre-filter and final filter layers. Reticulated foam layer for oil drainage tested to ASTM D2986:91. Poly Butylene Terphthalate (PBT) end caps.

Residual Oil Conten
:
0.01, 0.1, 1, 2 mg/M3
Activated Carbon
:
0.005 mg/M3
Initial DP
:
0.7 Bar
Micron rating
:
0.01 , 0.1 , 1, 5 micron sparticle removal (99.99% efficiency)
Housing Operating Pressure
:
10 Bar(Std.), can be offered upto 400 Bar

Stainless Steel Housing
Carbon Steel Housing

Stainless Steel Housing
Carbon Steel Housing

Size
:
1/4", 3/8", 1/2", 3/4" and 1" BSP
Flow
:
20 nM3/Hr to 200 nM3/Hr
Size
:
1" to 4" flanged to ASTM A105(larger size on request)
Flow
:
200 nM3/Hr
Shell
:
Carbon Steel ASTM A 106 Gr B (Stainless Steel housings also available)
