Vibrometer

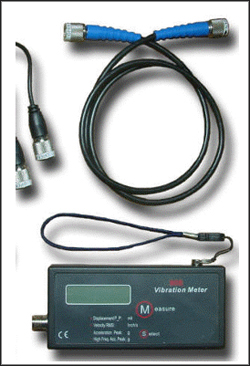

Vibrometer 908


» Features :
• Measuring vibration velocity, displacement and acceleration
• Small size, transducer included, battery powered, no other component required.
• Optional for inner or external Accelerometer.
• One button control both power and measurement. Very ease of use
• 3 1/2 LCD digital display, sampling per second
• Holding function. Automatic power off
• Suitable for monitoring machinery vibration caused by out-of-balance,  misalignment, gear damage, bearing faults, etc.

Vibrometer

filters

» Technical Data


Amplitude Ranges
Displacement :
1-1999 μm (or 200 mil) peak-peak
Velocity :
0.1-199.9 mm/s (or 20 in/s) true RMS
Acceleration :
0.1-199.9 m/s2 (or 20 g) Peak
Frequency Response

Displacement :
10-500Hz.  Velocity :10-1000Hz
Acceleration :
10-1000Hz - Inner accelerometer 908B

10-10000Hz - Depending on external accelerometer model
Overall accuracy :
+ 5%                Temperature range : 0 - 50 °C
Battery :
9V 6F22, 25 hours of continuous operation.
Pickup :
Accelerometer with handheld probe and/or magnetic base
Dimensions :
13 x 6 x 2.3 cm.   Weight : 200 gms
