Industrial Water Filters



FILTER HOUSING
P. P. Industrial Housing :

» Features & Benefits :

Opaque Filter housings are made up of rugged  reinforced polypropylene to offer   outstanding chemical compatibility in a variety of applications. It also exhibits exellent chemical resistance characteristics .Also, its small size and overall dimensions make it ideal fit for mounting in series.

» Application :

Residential Water
Process Fluids
Reverse Osmosis
Series use for OEM equipment
Lab Equipment
Food Service equipment
For humidifying systems with pressures under 7kg/cm2 and temperatures up to 52ºC

Industrial Water Filters
 » Product Specificaton :


MOC
:
PP
Length
:
10” , 20”
Connection
:
1/4", 1/2", 3/4" , 1"NPT or BSPT
Configuration
:
Double Open End (DOE)
Maximum Operating Temperature
:
52 ºC
Housing Colour
:
Blue Bowl/Black Cap, White Bowl & Cap
Operating  Pressure
:
125psi for 10"
O-Ring Material
:
SILICONE, EPDM, VITON

Industrial Water Filters

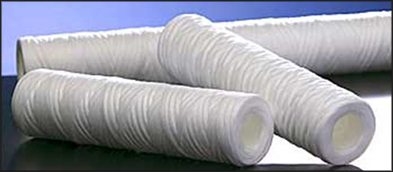

WOUND FILTERS :

Polypropylene / Glass Fiber / Cotton Fiber :

It provides true depth filtration, high dirt holding capacity, and extremely low media migration. Are available in a wide variety of lengths and porosities. Especially significant is the availability of filters in an almost endless combination of media and core material, to handle virtually any chemical and / or environment or temperature.

» Features :


• True depth filtration
• Longer service life
• Various core and wind material combinations
• High solids holding capacity
• Chemical and temperature compatibility
• Ease of service and replacement
• Wide choice of porosities, lengths and diameters
• Standard and custom sizes
• Continuous wind process

WOUND FILTERS

 » Product Specificaton :

» Application :

Micron Rating
:
0.5, 1, 3, 5, 10, 20, 50, 100 micron and above
Material of Construction
:
Poly Propylene / Glass Fiber / Cotton
Support, Core  & End Cap
:
PP, S.S 316, & S.S. 304
Filtration Area
:
0.6m2
Length
:
5”, 10” , 20” , 30” 40”
Inner Diameter
:
28mm
Outer Diameter
:
63mm
Configuration
:
Double Open End (DOE)

Chemcial Industry Iron chloride, Sodium hydroxide, Sodium hypochlorite, Plating liquids, etc.
Food & Beverage Potable water, Flavoring and food additives, Brewing water, etc. / Swimming pool
Electronic Industry Optical fiber cleaning, Printed-circuit boards, Shadow masks, Lead frames, TAB, Electrolyzed copper foils, etc
General Industry Aluminum rolling, Canning, Window sashes, Various plating, Various washing water, etc.
Note: We also offer Big Blue (Jumbo) Cartridge in 110mm OD in 10" and 20" Length

POLYPROPYLENE SPUN FILTERS :

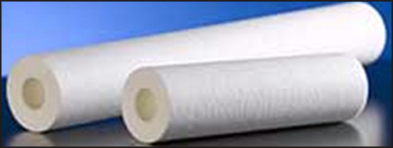

Flow Pure Depth Filters :

» Features :

• Four Layers structure cartridge, high contaminant holding capacity
• Longer service life with high removal ratings.
• 100%  PP for compatibility with a wide range of process fluids.
• Formed by thermal bond without use of any  binders and adhesives
• Maximum operating temperature : 60 ºC
• Recommended replaceable pressure drop : 1.5 kg/m2
• Certificated by NSF42 and FDA CFR Title 21

Flow Pure Depth Filters

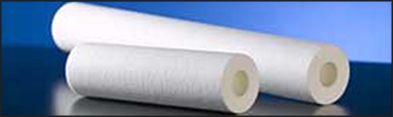

Super Pure Depth Filters :

» Features :

• Two  Layers structure cartridge with fine fiber in inner layer & coarse fiber in   outer layer in order    to filtrate different diameter of dust in different layer.
• Longer service life  & low pressure drop.
• 100%  PP for compatibility with a wide range of process fluids.
• Formed by thermal bond without use of any  binders and adhesives
• Maximum operating temperature : 80 ºC
• Recommended replaceable pressure drop : 2.1 kg/cm2
• Certificated by NSF42 and FDA CFR Title 21

Super Pure Depth Filters

Super Plus Depth Filters :

» Features :


• Absolute ratings from 1 to 100 microns
• High Strength and pressure resistance
• Surface pore structure spreads water flow to reduce pressure drop.
• Surface fiber fortified to prevent fiber releasing
• 100%  PP for compatibility with a wide range of process fluids
• Maximum operating temperature : 80 ºC
• Recommended replaceable pressure drop : 2.1 kg/cm2
• Certificated by NSF42 and FDA CFR Title 21

Super Plus Depth Filters

 » Product Specificaton :


Micron Rating
:
0.5,1,5,10,20,50 micron
Material of Construction
:
100% Melt-Blown Micro-Denier  PP Fiber
Support
:
PP Fiber
Length
:
10” , 20” , 30” 40”
Inner Diameter
:
28mm
Outer Diameter
:
63mm
Configuration
:
Double Open End (DOE), 226 / Fin (SOE), 222 / Flat (SOE)
Make
:
Filtteck Taiwan

Polypropylene Pleated Cartridges
PP Pleated cartridges are constructed with melt-blown polypropylene fiber media which combine exceptional fine partical holding capacity with precise micron rating than depth filter.

» Features & Benefits :
Absolute efficiency pleated filter are with double layer structure with filtration area more than 0.5m2, low pressure drop, high capacity of dust & long service life.
Certificated by USP XXIII & FDA CFR Title 21
End configurations to fit all standard housings

Polypropylene Pleated Cartridges

 » Product Specificaton :


Micron Rating
:
0.2, 0.45, 1, 2, 3, 5, 10, 20micron
Material of Construction
:
PP Fiber
Core  & End Cap
:
High Strength PP
O-ring Material
:
EPDM, Buan N, Silicone, Viton
Length
:
5" 10” , 20” , 30” 40”
Inner Diameter
:
28mm
Outer Diameter
:
69mm
Configuration
:
Double Open End(DOE), 226/Fin (SOE), 222/Flat (SOE)
MaximumOperating Temperature
:
95ºC
Make
:
Filtteck Taiwan ( Poly-Ray)


S.S. Pleated Cartridges :

» Features :

• High dirt holding capacity.
• High reliable standard specifications.
• Has low pressure drop due to high porosity.
• Has accurate filtration rating.
• Easily cleanable by conventional chemical cleaning and ultrasonic cleaning
• Filtration area of pleated stainless steel filter element is increased by pleating.

S.S. Pleated Cartridges
» Application :


• Used in fitration of chemical fibre, medicines, chemical reagents, oil products, water, gas


» Product Specificaton :

Micron Rating
:
3, 5, 10, 15, 20, 25, 30,40, 60, 80, 100micron
Material of Construction
:
S.S. 304
Length
:
10” , 20” , 30” 40”
Inner Diameter
:
28mm
Outer Diameter
:
60, 65, 70, 86mm
Configuration
:
DOE
Working Temperature
:
320ºC

S.S. Sintered Cartridges :

Sintered powder filters are mainly for the filtration of air or liquid and flow control. The materials for sintered powder filter can be stainless steel, bronze, nickel, titanium, Monel, Hastelloy etc. Available filtration rating is 0.5 to 100µ.

» Features :

• High strength, no need of support.
• No possibility of media migration occuring.
• Wide operating temprature range.
• Strongly corrosion resistant.
• Very easy to clean. Long service life.
• Available filtration rating 0.5, 1, 3, 5, 10, 20, 40, 75, 100µ
• Any specific size can be fabricated as per customer request

S.S. Sintered Cartridges

» Product Specificaton :
  » Application :

Micron Rating
:
0.5, 1, 3, 5, 10, 20, 40, 75, 100µ
Material of Construction
:
S.S. 316L
Support, Core  & End Cap
:
S.S. 304 / 316 / 316L
Length
:
10” , 20” , 30” 40”
Inner Diameter
:
28mm
Outer Diameter
:
63mm, 70mm, 80mm
Configuration
:
Double Open End (DOE)

:
1” BSP, 222, 226

• Used in fitration of chemical fibre, medicines, chemical    reagents, oil products, water, gas

S.S. Housing :

S.S. Housing
S.S. Housing

Features & Benefits :

Features & Benefits :

It is designed to provide utmost efficiency in industrial, commercial and OEM applications. Designed for extremely cost-sensitive applications and Engineered for filtration applications involving chemical systems, general prefiltration, process water and final product purification.

It is designed to provide cost-effective, high efficiency particle removal from fluids for industrial and commercial processes  including water, edible oils, coatings, lubricants, coolants and solvents.

Sizes
:
10”  x 1 no of cartridge to 60” long x 200 nos of cartridges. Suitable for DOE & Code-7 Type Cartridges
Material of Construction
:
SS316L, SS316 & SS304

Sizes
:
4” Dia x 9 ” & 16 " Long Bag Filter
7” Dia x 17” & 32" Long Bag Filter
Material of Construction
:
SS316L, SS316 & SS304
