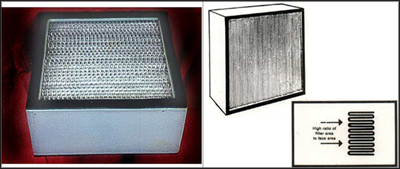

Panel Air Filters


Absolute (HEPA) Filters :

» Features :

Application :
Panel Air Filters are used for Nuclear Instalation Clean - Room Systems. Pharmaceutical industry, Laminar Flow Working Bench, Hospital Sterile areas, Space application Food processing zone, Bilogical Centre and many More
Efficiency :
99. 997 % to particle size of 0.3microns. Velocity 1.2 to 1.5 M / sec.
Frame :
Aluminium Flange type or Box type
Media :
Water and fire proof 100% Micro Fibre Glass paper in pleated from.
Tapered aluminium safe edge separators design that provides significant advantage controlled media spacing for virtually no turbulence low friction, uniform velocity, uniform dust holding, optimum filter performance

Panel Air Filters
Reasons of areas with an important need for eliminating submicron particles could be bomb shelters gas masks, optic and precision mechanical production, sensitive electronic components computer, nuclear inslallation clean room systems pharmaceutical industry laminar flow working bench, hospilal slerile areas, space application food processing zones, biological centre and many more.

Air filters with an extremely high collecting efficiency were required for above specific areas.

The Absulule (HEPA) Filter consist of frame in which the media is inserted is highly folded form. The filers are held open by corrugated sepearators. The media is produced from highly waler repellent and temperature resistant 100% microglass, High Strength fiber paper. The folded configuration provides an exceptionly large fltering area in proportion to the face area of the filter.Separator design that provides significant advantage controlled media sparing for virtully no turbulance low friction uniform velocity, uniform dust holding optimum filter performance.

The air velocity through the media is very low, normally abot 2-2.5 cm/sec. The seperators are safe edge tapered aluminum or plastic. The absolutes are supplied as standard with gasket of either closed cell neoprene are if desired and at on extra charge with silicon gasket. The gaskets are provided at air entry side and air exit side.

The Sealer between the filter media and the frame is of neaprene rubber base silicone glue, urethene compound or ceramics according to the temperature requirements.
Absolute filters are available with same of extruded aluminum untreated or Elecrozined or stainless sheeting for special application.
Efficiency : 99.977

HEPA Selection Chart

MODEL NO.
SIZE OF THE FILTERS
CAPACITY CFM
MEDIA AREA
HDHEPA :-1
24" X 24" X 11.1/2 "
1000
32 Mt 2
HDHEPA :-2
24" X 24" X 5.1/2 "
600
16 Mt 2
HDHEPA :-3
24" X 24" X 5.1/2 "
600
16 Mt 2
HDHEPA :-3
24" X 24" X 5.1/2 "
600
16 Mt 2

Microvee (Dry Type)

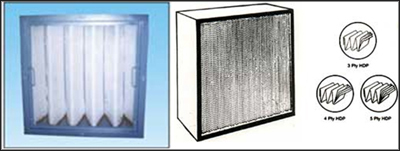

HDPE (Washable) Filters

Microvee (Dry Type)
HDPE (Washable) Filters

Application
These filters are used in Pharmaceuticals, Electronic, Nuclear, Hospital, Computer and Synthetic Fibre Industry. And Paint Booth and Electric & Diesel Generators and also used as Pre-filters to absolute Air Filters.
Efficiency
99 % for particle size of 5 microns
Frame
Mild steel painted or Aluminium with handle and gaskets in flange or Box type in different sizes and capacity
Media :
Polyester pressed, Woolen pressed filter fabric stitched in GI wire gauze support
Servicing :
3 cleaning in 6 months by reverse air jet at 100 PSI at 19 mm Wg
Dust Holding Capacity
150 Gms / M2

Application
This filter are for high efficiency with high chemical, corrosion resistance, ideal for chemical plants, Naval Frigates, Ventilation Plants operating under variable humidity atmosphere
Efficiency
99 % to 5 microns / 95 % to 20 microns
Frame
Mild Steel enamel painted / Aluminum or Galvanized flange type or box type
Media :
High Density Polyethylene mesh in different nos of layer for different efficiency
Servicing :
Washed by commercial detergent at  19 mm Wg pressure. Filters should be allowed to dry before refitting

Microvee (Dry Type) Selection Chart

HDPE Filters Selection Chart

MODEL NO.
SIZE OF THE FILTERS
CAPACITY  CFM
MEDIA AREA
HDDFN : - 1
24" X 24" X 12 "
2000 Cfm
10 Mt2
HDDFN : - 2
24" X 24" X 6 "
1000 Cfm
5 Mt2
HDDFN : - 3
20" X 20" X 6 "
700 Cfm
4 Mt2
HDDFN : - 4
24" X 24" X 2 "
340 Cfm
1.7 Mt2
HDDFN : - 5
25" X 20" X 2 "
300 Cfm
1.5 Mt2
HDDFN : - 6
20" X 20" X 2 "
240 Cfm
1.3  Mt2

EFFICIENCY

90% TO 20 Mn

95 % to 10 Mn.

99% 5 Mn

MODEL NO.

HDHCR - 3 Ply

HDHPR 4 Ply

HDHPR 5 Ply



SR. NO.
SIZE OF THE FILTERS
CAPACITY
 IN CFM

1
24" X 24" X 12 "
8680
3200
2000
2
24" X 24" X 6 "
4340
1600
1000
3
20" X 20" X 6 "
3000
1100
700
4
24" X 24" X 2 "
1450
540
340
5
20" X 25" X 2 "
1260
490
300
6
20" X 20" X 2 "
1000
370
240
7
20" X 16" X 2 "
800
305
220

Metalic Filters

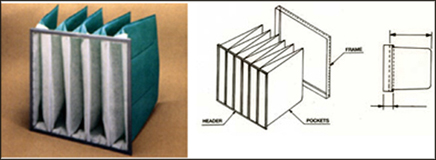

Pocket  Filters

Application
METALIC Filters are used in Air Handling Equipments, units, car body, compressor air intake and for Comfort Air Conditioning, Ventilation Systems. These filters are economical
Efficiency
85 - 90% down for normal atmospheric dust
Frame
Mild steel or Aluminium and Non - Magnetic
Media :
Several Layers of Special G I Corrugated and plain wire nettings / of different meshes
and sizes. Supported on both faces by crimped G I wire net or Expanded metal
Servicing :
Washable, used with or without oil
Dust holding capacity :
270 - 330 Gms/ M2

Application
These Bag Filters are Designed for higher efficiency air filtration in Ventilation (HVAC), Central Air Conditioning Pharmaceuticals, Electronic Industry, Cement Plants, Gas Turbines, Textile Mills, Nuclear Power Plants. This excusive media removes, smokes, Fly ash and other contaminates, that stain cellings, walls, drapers, and light fixtures and bulbs upon heating cooling coils,
Efficiency
From 95 % to 99 % down to 5 to 2 microns
Frame
Galvanised, Aluminium or S S
Header : Galvanised, Aluminum or SS
Media :
Variety of filter media from Synthetic Micro Glass Fibre, Non -Woven Polyester, Polyproplene, High Density Polythelene with or without serim backing. The unique media can also with stand greater velocity over less media area, thereby offering the user more compact filter cell

This all steel is recommended where a permanent washable fitter is required. Sturdy construction and durable steel makes this highly reliable product. This filters are good for make-up air systems, fan coil units and unit ventilators. High Dust holding capacity due to its uvique Honey comb media design.
This design splits the entering air into numerous air streams which cross each other at right angles. Creating to torbulence which lends to bring all entrailed dust particles in contact with the media.
This filter are capable of fltering large portion of particulate matter from normal process or confort ventilation air by causing the foreign particles to come is contact with and impinge surface of the filtering media.
Media: All galvanised, Aluminum, Copper and stainless steel.
Frame: Galvanised, Aluminiom or stainless steel.


Fine Filters

Pre Filters


Microvee Optimum devices to arrest fine particle from air. The special synthetic non-woven bonded fiber suitably reinforced to ensure high performance, efficiency and longer service life. It is pressed in the form of a fabric and given special treatment which prevents fungus growth. This media is supported with G.I. or Aluminium wire mesh and folded into form accordion pleats held rigid by spacers to ensure large dust holding capacity high flow rate and low pressure drop across the filter.
A sheet metal frame with flange encloses the pleated medium with necessary seats. Soft non-premeable gaskets are also provided on the flange of the frame for ensuring sealing between the filter and the mounting frame.

Frame: Mild steel with paint or powder coated. Galvanised Alaminium or stainless steel channel or Flange type.

Efficiency: 95% To 99% TO 5 T0 3 MICROW 120ocTo 100% relative humidity.

Servicing: 3Cleaning in six months by reverse jet 100Ps+as 19m wg or water washable.

The special synthetic non-woven bonded fiber, suitably reinforced media sandwiched in though synthetic neting or supported on Aluminium of G.I wire mesh, and folded to form accordion pleats. The accordion pleats am supported by Aluminums spacers to ensure uniform air flow.

Frame: Mild steel sheet painted or powder coated or Aluminium Or stainless steel channel type or flange type.

Efficieny: 80% to 90% down the particle size of 20 to 10 (u).

Servicing: 3 Cleaning in six months by water wash at 100 PSI or reverse jet at 19mw.g.
